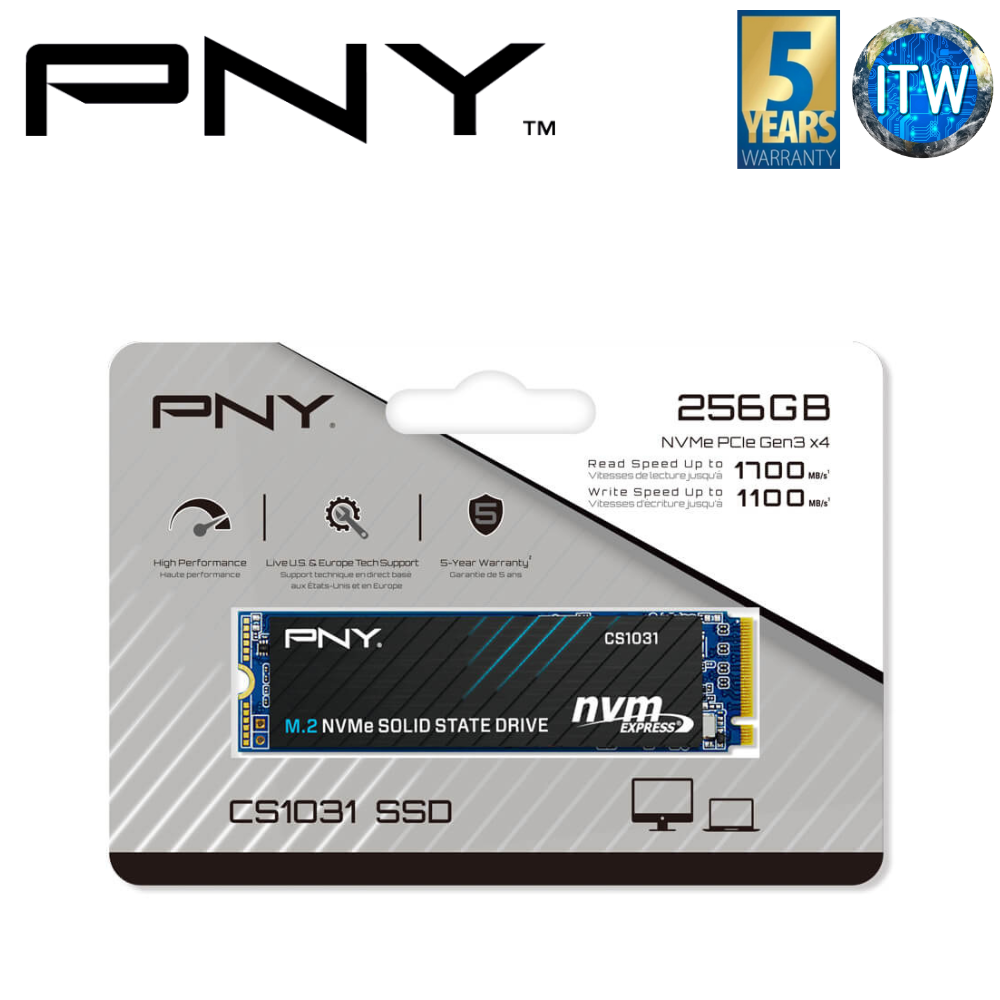

Product Name: ITW | PNY CS1031 M.2 2280 NVMe Gen3x4 Internal SSD (250GB/500GB/1TB)
■ Sequential read of up to 2,400 MB/s
■ Sequential write of up to 1,750 MB/s
■ Faster boot-up and quicker application launch
■ Better overall system performance
■ Reliable storage
■ Low power consumption, cool and quiet operation
Specification
✎ Usable Capacities: 256GB/ 500G/ 1TB
✎ NAND Components: 3D NAND
✎ Interface: PCIe Gen 3x4 NVMe 1.3
✎ Form Factor: M.2 2280
✎ Package Dimensions (L×W×H): 123 x 85 x 4.3 mm
✎ Product Dimensions (L×W×H): 22 x 80 x 2 mm
✎ Weight: 6.6g
✎ Max Sequential Read*
■ 256GB: Up to 1700MB/s
■ 500G: Up to 2200MB/s
■ 1TB: Up to 2400MB/s
✎ Max Sequential Write*
■ 256GB: up to 1100MB/s
■ 500GB: up to 1200MB/s
■ 1TB: up to 1750MB/s
✎ TBW
■ 256GB: 150
■ 500GB: 110
■ 1TB: 240
✎ PCIe Link Power Management: APST, ASPM, L1.2
✎ Operating Temperature: 0°C to 70°C
✎ Storage Temperature: -40°C to 85°C
✎ Certifications: BSMI, CE, FCC, KCC, VCCI, REACH, RoHS
✎ MTBF: 2 Million Hours
✎ Error Correction Code: Less than 1 sector per ten quadrillion bits read
✎ Product Health Monitoring: Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T)
✎ Full End-to-End Data path protection: Supported
✎ Performance Optimization: TRIM (requires OS support)
✎ Warranty: 5-year Limited Warranty
