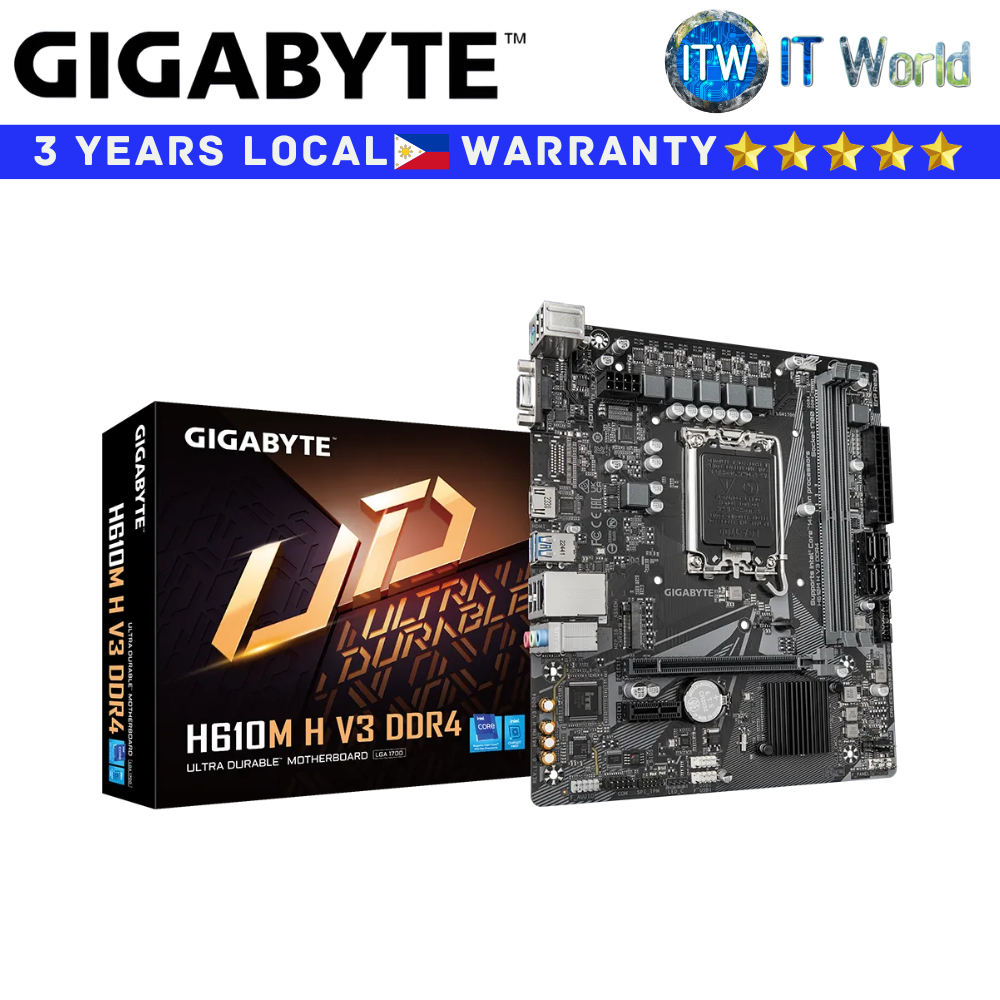

Product Name: Itw | Gigabyte Motherboard H610M H V3 mATX DDR4 (GA-H610M-H-V3-DDR4)
Key Feature
Specification
CPU
• Supports Intel® Core™ 14th/ 13th /12th processors
• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
• 4+1+1 Hybrid Digital VRM Design
• GbE LAN with Bandwidth Management
• NVMe PCIe 3.0 x4 M.2
• High Quality Audio Capacitors and Audio Noise Guard
• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
• GIGABYTE APP Center, Simple and Easy Use
• Anti-Sulfur Resistors Design
Chipset
Intel® H610 Express Chipset
Memory
• Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
• 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
• 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Audio
• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
Lan
Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Expansion Slots
CPU:
• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface
Chipset:
• 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD
support)
• 4 x SATA 6Gb/s connectors
USB
Chipset:
• 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• 4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
• 4 x USB 2.0/1.1 ports available through the internal USB headers
Form Factor
Micro ATX Form Factor; 22.3cm x 19.3cm
