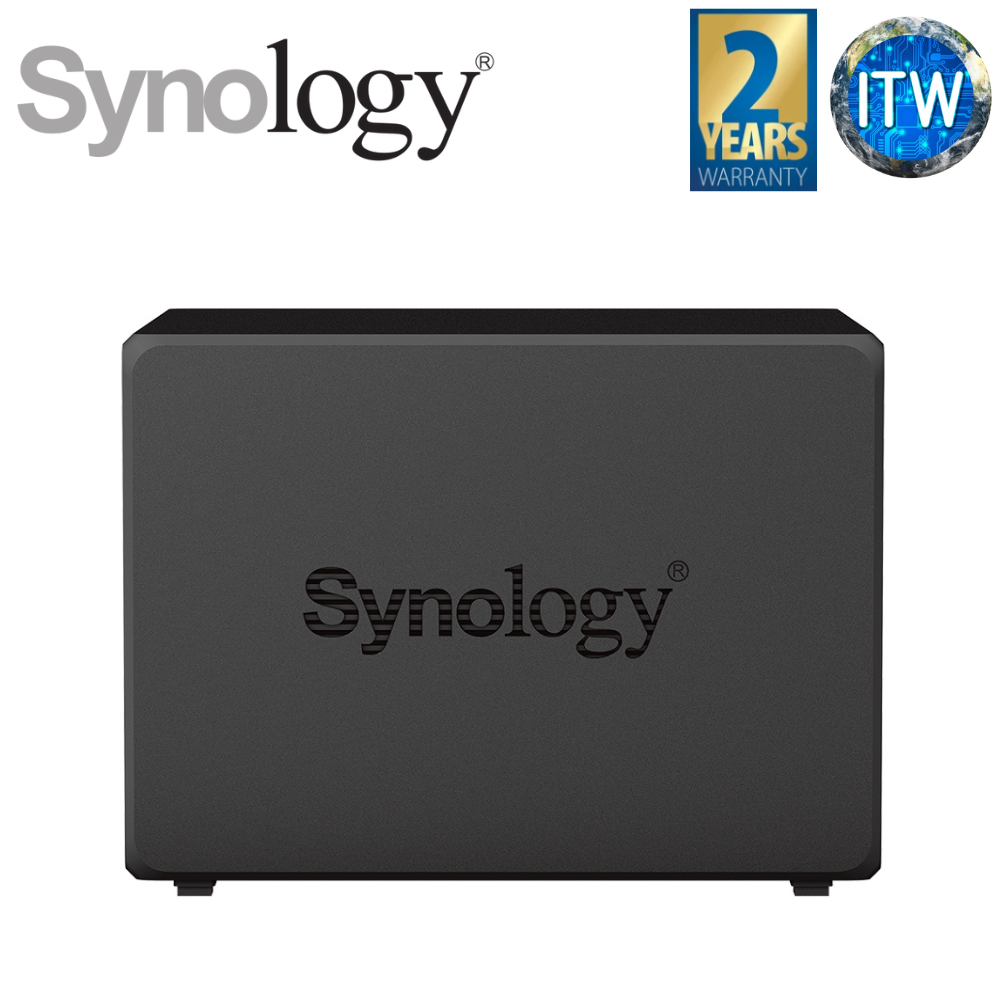

Product Name: Synology DS923+ 4bay Diskstation NAS
About this item
■ Stunningly compact Powerful functionality in a tiny package, with room for 10GbE and dual NVMe drives.
■ Consolidate and share Flexibly store and organize 50 TB of data, then share with anyone.
■ Keep your data safe Hardware and software engineered to protect your data — trusted by millions.
■ The performance you need Reduce transfer times with DS923+, designed to accelerate your workloads. Easily add faster networking and NVMe drives to further boost performance.
■ Store, share, and protect Manage all your documents, photos, and other files, back up applications and devices, and protect your physical assets with professional video surveillance.
Specification
CPU
✎ CPU Model: AMD Ryzen R1600
✎ CPU Architecture: 64-bit
✎ CPU Frequency: 2-core/4-Thread 2.6Ghz which can be burst/turbo to 3.1GHz
✎ Hardware Encryption Engine (AES-NI): Yes
MEMORY
✎ System Memory: 4GB
✎ Memory Module Pre-installed: 4GB DDR4 ECC x1
✎ Total Memory Slots: 2x SODIMM
✎ Maximum Memory Capacity: 32GB
STORAGE
✎ Drive Bays: 4
✎ Maximum Drive Bays with Expansion Unit: 9 (DX517 x 1)
✎ M.2 Drive Slots: 2(NVMe)
✎ Compatible Drive Type
■ 3.5″ SATA HDD
■ 2.5″ SATA SSD
■ M.2 2280 NVMe SSD
✎ Hot Swappable Drive: Yes
EXTERNAL PORTS
✎ RJ-45 1GbE LAN Port*: 2 (with Link Aggregation / Failover support)
✎ USB 3.2 Gen 1 Port*: 2
✎ eSATA Port: 1
PCIE
✎ PCIe Expansion: 1 x Gen3 x2 network upgrade slot
FILE SYSTEM
✎ Internal Drives
■ Btrfs
■ EXT4
✎ External Drives
■ Btrfs
■ EXT4
■ EXT3
■ FAT
■ NTFS
■ HFS+
■ exFAT
APPEARANCE
✎ Size (Height x Width x Depth): 166 mm x 199 mm x 223 mm
✎ Weight: 2.2 kg
OTHERS
✎ System Fan: 92 mm x 92 mm x 2 pcs
✎ Fan Speed Mode
■ Full-Speed Mode
■ Cool Mode
■ Quiet Mode
✎ Brightness Adjustable Front LED Indicators: Yes
✎ Power Recovery: Yes
✎ Noise Level*: 19.8dB(A)
✎ Scheduled Power On / Off: Yes
✎ Wake on LAN / WAN: Yes
✎ Power Supply Unit / Adapter: 100 W
✎ AC Input Power Voltage: 100V to 240V AC
✎ Power Frequency: 50/60 Hz, Single Phase
TEMPERATURE
✎ Operating Temperature: 0°C to 40°C (32°F to 104°F)
✎ Storage Temperature: -20°C to 60°C (-5°F to 140°F)
✎ Relative Humidity: 5% to 95% RH
WARRANTY
✎ 3-year hardware warranty, extendable to 5 years with EW201 or Extended Warranty Plus
PACKAGING CONTENT
✎ Main Unit X 1
✎ Accessory Pack X 1
✎ AC Power Adapter X 1
✎ AC Power Cord X 1
✎ RJ-45 LAN Cable X 2
✎ Quick Installation Guide X 1
OPTIONAL ACCESSORIES
✎ DDR4 ECC SODIMM: D4ES02-8G/D4ES01-16G
✎ Expansion Units: DX517
✎ 3.5″ SATA HDD: HAT5300
✎ 2.5″ SATA SSD: SAT5210
✎ M.2 2280 NVMe SSD: SNV3410
✎ 10GbE Network Upgrade Module: E10G22-T1-Mini
✎ VisualStation: VS360HD
✎ Surveillance Device License Pack
