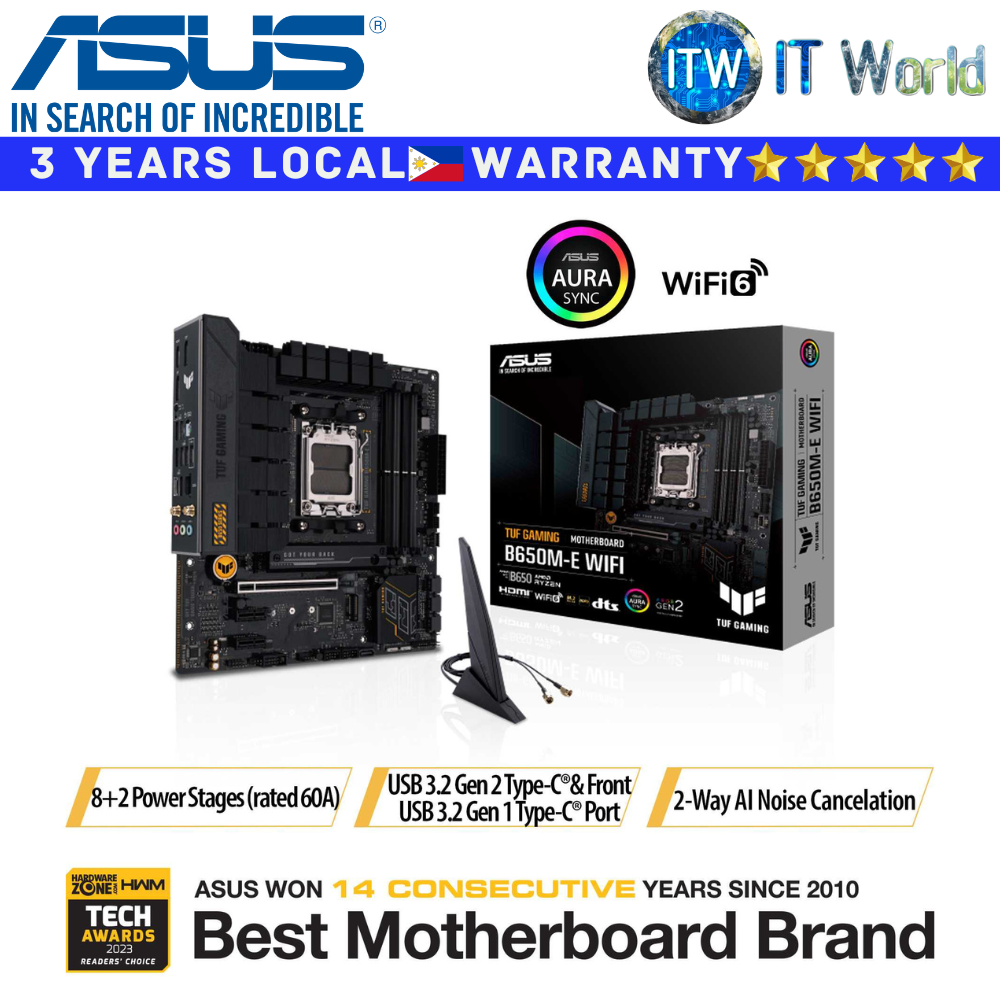

Product Name: Itw | ASUS Motherboard TUF Gaming B650M-E WIFI micro-ATX AM5 DDR5
TUF GAMING B650M-E WIFI
> ASUS TUF GAMING B650M-E WIFI takes all the essential elements of the latest AMD Ryzen™ Desktop Processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series. This platform delivers the power and connectivity that advanced AI PC applications demand.
Specification
CPU
> AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Chipset
> AMD B650
Memory
> 4 x DIMM slots, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ / 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
> Dual Channel Memory Architecture
> Supports AMD Extended Profiles for Overclocking (EXPO™)
> OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
> 2 x DisplayPort**
> 1 x HDMITM port***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
> AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
- 1 x PCIe 4.0 x16 slot (supports x16 mode)
> AMD Ryzen™ 8000 Series Desktop Processors
- 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
> AMD B650 Chipset
- 2 x PCIe 4.0 x1 slots
* Please check the PCIe bifurcation table on the support site.
** Specifications vary by CPU types.
Storage
> Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
> AMD Ryzen™ 9000 & 7000 Series Desktop Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
> AMD Ryzen™ 8000 Series Desktop Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**
> AMD B650 Chipset
- 4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
** Specifications vary by CPU types.
Ethernet
> 1 x Realtek 2.5Gb Ethernet
> TUF LANGuard
Wireless & Bluetooth
> Wi-Fi 6
> 1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
> Supports 2.4/5GHz frequency band
> Bluetooth® v5.2*
*The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
> Rear USB (Total 8 ports)
- 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®)
- 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
> Front USB (Total 7 ports)
- 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
- 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
> Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
> Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
> 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®)
> 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
> 4 x USB 2.0 ports (4 x Type-A)
> 2 x DisplayPort
> 1 x HDMITM port
> 1 x Wi-Fi Module
> 1 x Realtek 2.5Gb Ethernet port
> 3 x Audio jacks
> 1 x BIOS FlashBack™ button
> 1 x PS/2 Keyboard/Mouse combo port
Form Factor
> micro-ATX / 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
