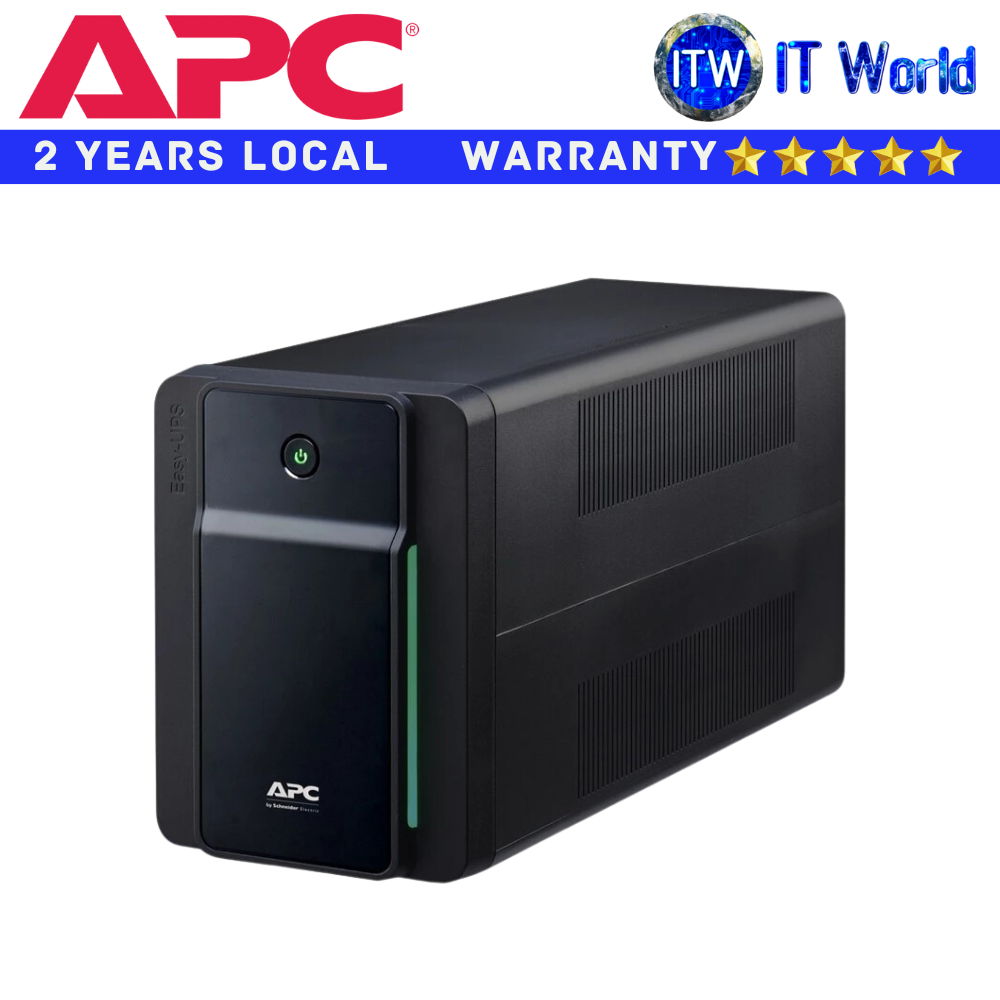

Product Name: Itw | APC Back-UPS Power Supply UPS Easy UPS BVX 1200VA 230V AVR Universal Sockets (BVX1200LI-MS)
Key Feature
• Output power capacity : 650 Watts / 1.2kVA
• Output Connections: (1) IEC 60320 C13 (Battery Backup)
• Nominal Input/ Output Voltage : 230V
• Input Connections: IEC 60320 C14
• Output Frequency (sync to mains): 50/60 Hz +/- 1 Hz Sync to mains
• Easy UPS provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.
• Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.
Specification
Easy UPSFeatures & Benefits
• Availability: Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging.
• Advanced Safety Features: Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.
• Battery failure notification: Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Safety
• Safety-agency approved: Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Protection
• Battery backup and surge protection: Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.
• Battery and surge protected outlets: Back up and protect your hardware and data during power outages, surges and spikes.
Manageability
• LED Indicators: Provide easy-to-read status of the unit and utility power conditions.
• Audible alarms: Provides notification of changing utility power and UPS power conditions
Features
• Sleek design: Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.
• Boost Automatic Voltage Regulation (AVR): Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
• Cold-start capable: Provides temporary battery power when the utility power is out.
• Transformer-block spaced outlets: Protect equipment with input transformer blocks without blocking access to other receptacles.
Product Distribution
• Australia, Hong Kong, Indonesia, India, Cambodia, South Korea, Myanmar, Malaysia, New Zealand, Philippines, Singapore, Thailand, Taiwan, Vietnam
Technical Specifications
Output
• Max Configurable Power (Watts): 650Watts /1.2kVA
• Output Frequency (sync to mains): 50/60 Hz +/- 1 Hz Sync to mains
• Topology: Line interactive
• Waveform type: Stepped approximation to a sinewave
• Transfer Time: 6 ms typical : 10 ms maximum
Input
• Input frequency: 50/60 Hz +/- 5 Hz Auto-sensing
• Input voltage range for main operations: 140 - 300 (230 V) ACV
• Number of Power Cords: 1
• Input Power Factor at Full Load: 0.51
Batteries & Runtime
• Battery type: Lead-acid battery
• Typical recharge time: 8hour(s)
• Nominal Battery Voltage: 12 V
• Expected Battery Life (years): 1 - 2
• Battery Volt-Amp-Hour Capacity: 95
Communications & Management
• Control panel: LED Status display with on line : on battery
• Audible Alarm: Alarm when on battery : distinctive low battery alarm
Surge Protection and Filtering
• Surge energy rating: 273Joules
