Product Name: MSI GeForce RTX4080 16GB GDDR6X Ventus 3X OC Graphic Card
Feature
The NVIDIA® GeForce RTX™ 4080 delivers the ultra performance and features that enthusiast gamers and creators demand. Bring your games and creative projects to life with ray tracing and AI-powered graphics. It’s powered by the ultra-efficient NVIDIA Ada Lovelace architecture and up to 16GB of superfast G6X memory.
Boost Clock / Memory Speed
✎ Extreme Performance: 2550 MHz (MSI Center), Boost: 2535 MHz, 22.4 Gbps
✎ 16GB GDDR6X
✎ DisplayPort x 3 (v1.4a), HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)
Triple Fan Thermal Design

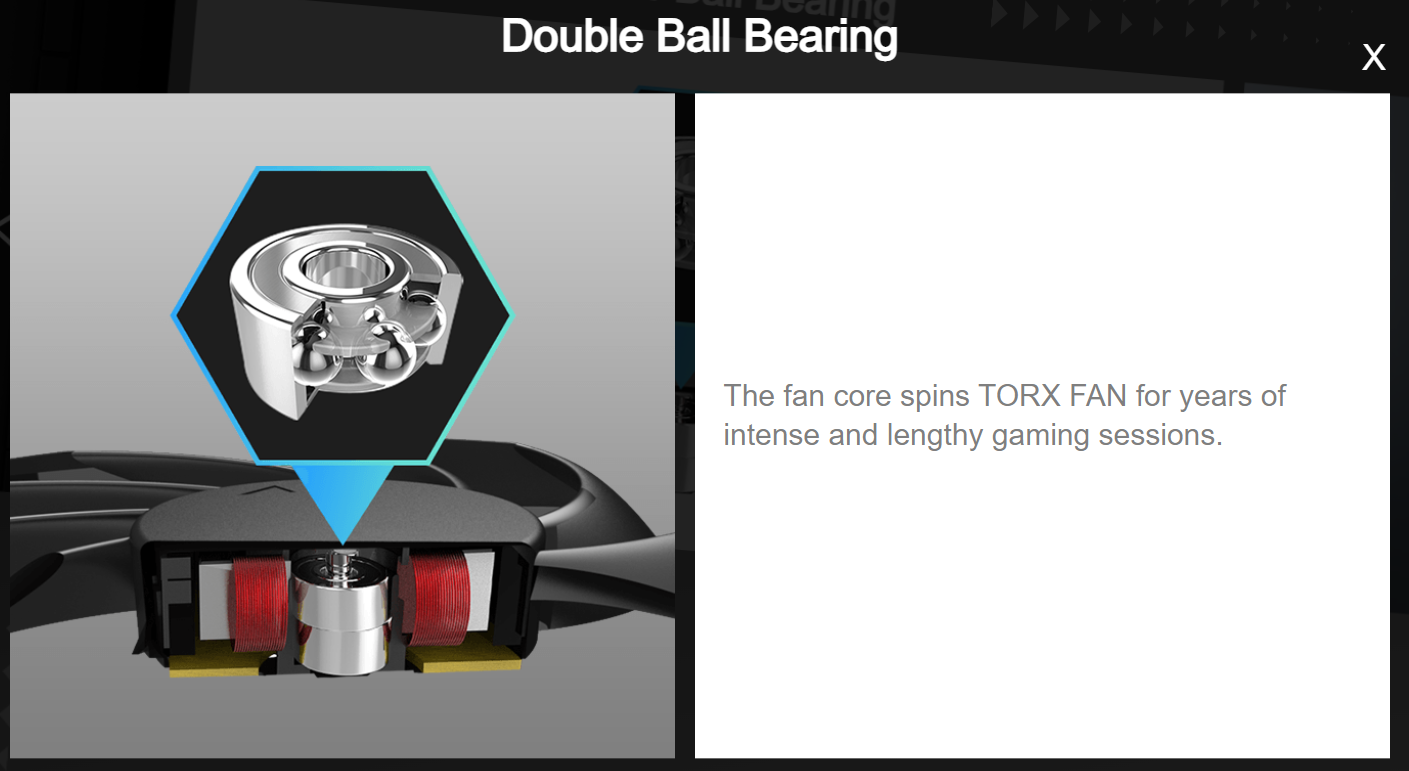

✎ TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
✎ Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
✎ Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
✎ Zero Frozr:The fans completely stop when temperatures are relatively low, eliminating all noise.

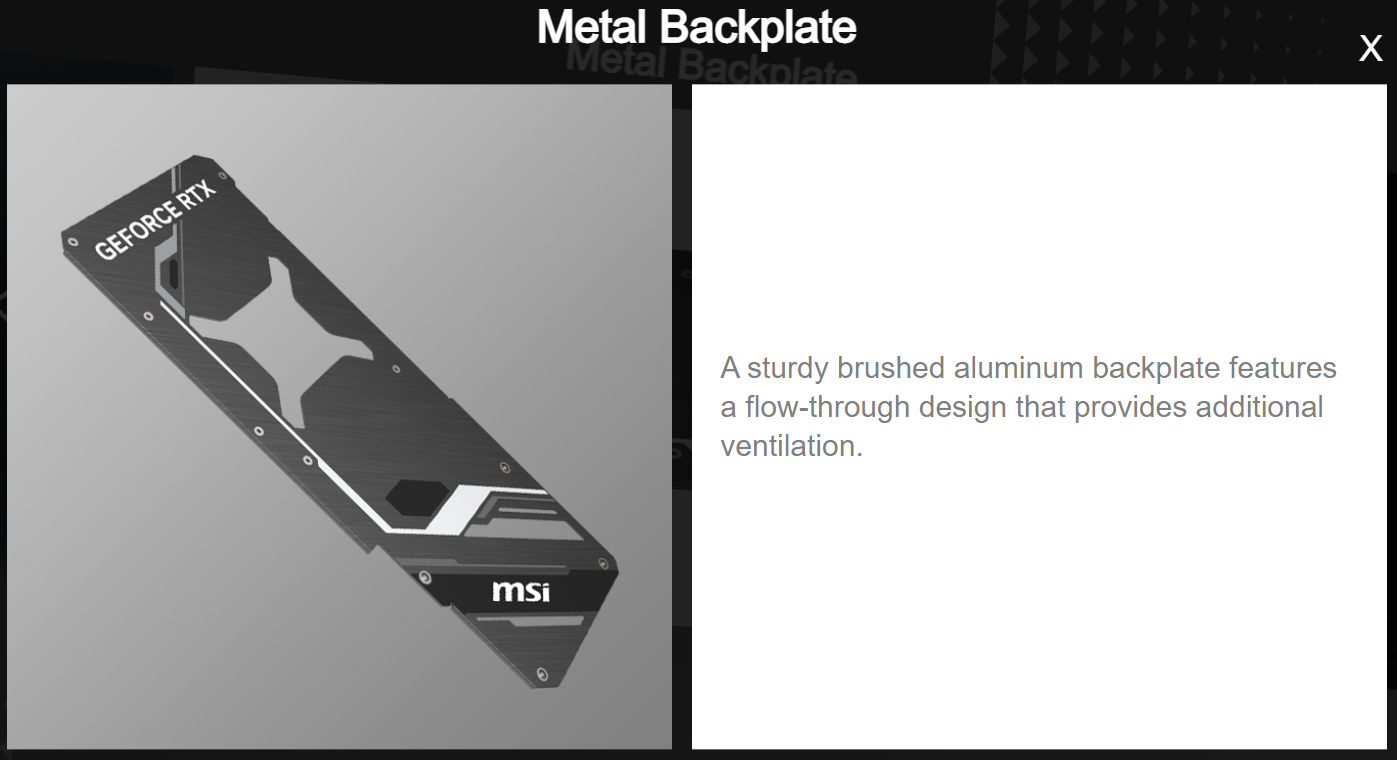

Metal Backplate
✎ Thermal pads under the sturdy flow-through metal backplate helps with cooling.
MSI Center
✎ The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
Specification
✎ MODEL NAME
■ GeForce RTX™ 4080 16GB VENTUS 3X OC
✎ GRAPHICS PROCESSING UNIT
■ NVIDIA® GeForce RTX™ 4080 16GB
✎ INTERFACE
■ NVIDIA® GeForce RTX™ 4080 16GB
✎ CORE CLOCKS
■ Extreme Performance: 2550 MHz (MSI Center)
■ Boost: 2535 MHz
✎ CUDA® CORES
■ 9728 Units
✎ MEMORY SPEED
■ 22.4 Gbps
✎ MEMORY
■ 16GB GDDR6X
✎ MEMORY BUS
■ 256-bit
✎ OUTPUT
■ DisplayPort x 3 (v1.4a)
■ HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)
✎ HDCP SUPPORT
■ Y
✎ POWER CONSUMPTION
■ 320W
✎ POWER CONNECTORS
■ 16pin x 1
✎ RECOMMENDED PSU
■ 750W
✎ CARD DIMENSION (MM)
■ 322 x 136 x 63mm
✎ WEIGHT (CARD / PACKAGE)
■ 1595g / 2200g
✎ DIRECTX VERSION SUPPORT
■ 12 Ultimate
✎ OPENGL VERSION SUPPORT
■ 4.6
✎ MAXIMUM DISPLAYS
■ 4
✎ G-SYNC® TECHNOLOGY
■ Y
✎ DIGITAL MAXIMUM RESOLUTION
■ 7680 x 4320
